Project Overview #

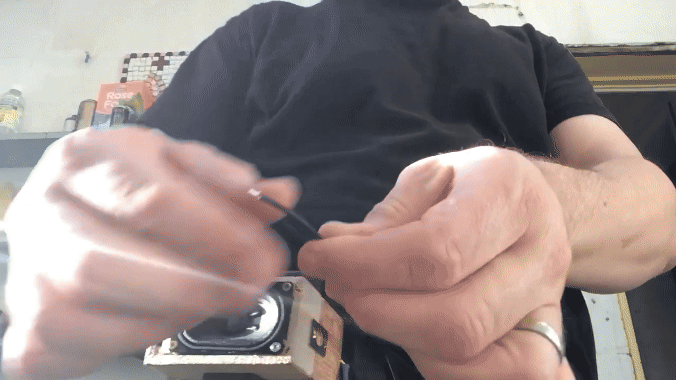

Summary: This project explores the creation of an Atari Punk Console (APC) with a light-sensitive oscillator. By integrating light-dependent resistors (LDRs) into the classic APC design, this experiment investigates how light variations can influence sound synthesis. The project combines DIY electronics with creative sound design, showcasing the potential for interactive, light-driven sonic outputs.
Background The Atari Punk Console is a classic DIY sound synthesis circuit known for its raw, lo-fi sound. Based on the 556 dual-timer IC, it produces square wave tones with a characteristic retro, arcade-like aesthetic. By modifying the standard APC design to include light-sensitive components, the project aims to add a layer of environmental interactivity to the synthesis process.
Key Features of the Project 1. Light Sensitivity . Light-Dependent Resistors (LDRs): Two LDRs are wired into the circuit to modulate the oscillators based on ambient light levels. . Real-Time Interaction: Changes in light intensity directly influence pitch and tone, creating a dynamic and interactive sound experience. 2. Circuit Design . Core Components: A 556 dual-timer IC forms the backbone of the APC, with potentiometers controlling key parameters like pitch and tone. . Modifications: LDRs replace or supplement standard potentiometer controls, allowing for light-reactive modulation. 3. Sound Output . Produces noisy, glitchy, and tonal variations influenced by light input. . Output can be fed into additional effects or amplified for standalone use.
Challenges and Insights Calibration involved adjusting the LDR sensitivity to achieve a desirable range of pitch modulation. Testing in various lighting conditions emphasized the need to design for both controlled and uncontrolled environments.
Applications and Future Plans The APC light oscillator could serve as an expressive instrument for live performances, reacting to stage lighting or handheld torches. It has potential as a tool for generative soundscapes when combined with other modular synth elements. The project’s straightforward design also makes it suitable for teaching basic electronics and sound synthesis concepts.
Materials Used . 556 Timer IC . Light-Dependent Resistors (LDRs) . Potentiometers (for additional manual control) . Capacitors and Resistors . Breadboard and Jumper Wires . Power Source: 9V battery or equivalent
Progress So Far This project has successfully integrated LDRs into the APC design, demonstrating the potential for light-responsive sound synthesis. The results are promising, with rich sonic textures emerging from light interactions. Next steps include creating a portable enclosure, experimenting with LED feedback loops for added visual elements, and integrating the APC with other modular or DIY synth projects for expanded functionality.
This project is a step toward blending retro-inspired sound synthesis with modern, interactive technologies. It represents a fusion of nostalgia, experimentation, and creative expression, aligning with the broader goals of my sound design practice.
